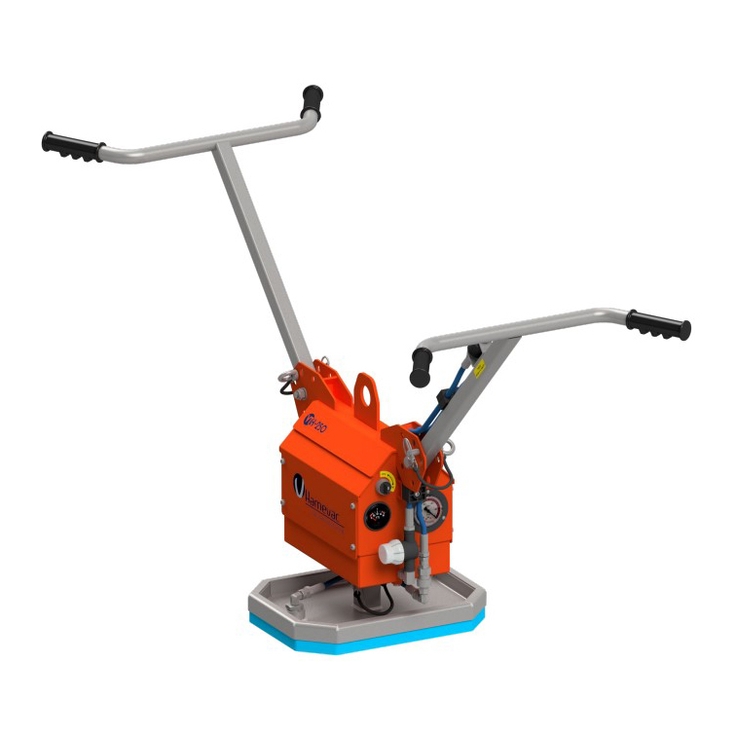

VTH-250-A 250kg Vacuum Lifter Battery Powered
The VTH-250-A is a Vacuum Lifting Aid equipped with a 12V vacuum pump with a capacity of 2 m3/h. When the optimum vacuum is reached, the pump switches itself off, so that no energy is lost unnecessarily. The unit can be used by hand using the 2 steering handles and on a machine with the standard lifting eye.
Specifications
• W.L.L. (Working Load Limit): 250 kg
• Weight: 28 kg
• Dimensions (lxwxh): 1483x583x709 mm
• Propulsion: Vacuum pump
• Pump capacity: 2 m3/h
• Minimum work pressure: -0.6 Bar
• Controls: Manual
Trouble-free lifting/relocating up to 250 kg
Lifting/relocating (concrete) products up to 250 kg? With the VTH-250-A this can be done without any problems. With suction plates ranging between 98 kg. and 250 kg. working load limit, there is a suitable suction plate for every product up to 250 kg.
Hand and Machine:
Each unit is equipped with adjustable steering handles, a lifting eye and a battery charger.

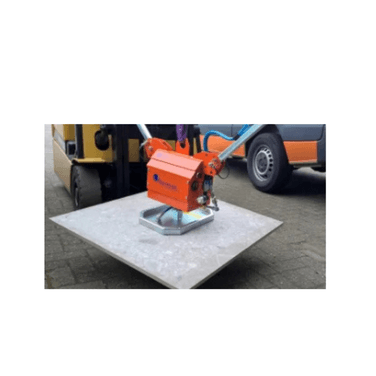

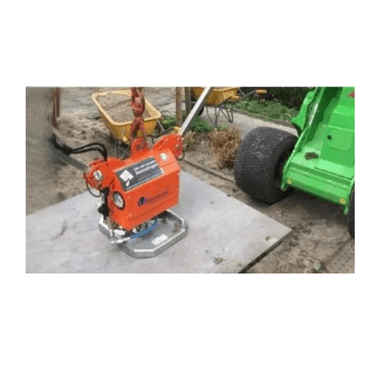

The VTH-250-A can be used by hand, but also very easily on your machine by using the standard lifting eye.
Comfort and safety:
The steering handle is equipped with a manual release valve, so suction and release directly from the steering handle. There are 3 working positions and a transport position. The unit is also equipped with a clearly visible vacuum meter and an acoustic safety signal so it is always clear when it is safe to lift. Finally, the VTH-250-A is equipped with a vacuum storage tank. If the vacuum pump stops for whatever reason, the product will stick! Safety guaranteed!
