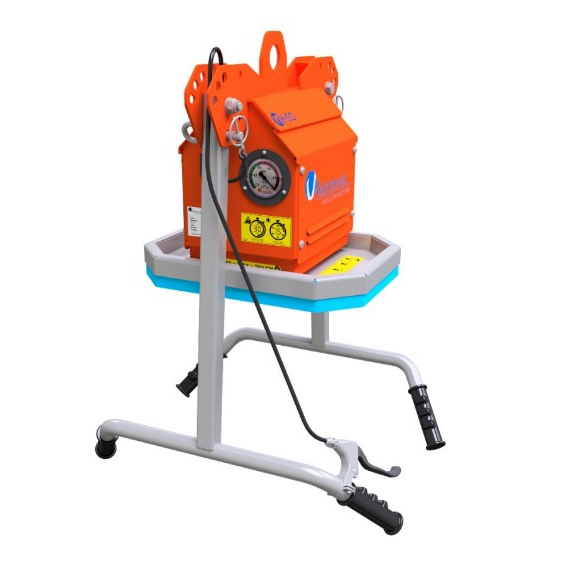

VTH-150-BL 200kg Vacuum Lifter 110v
The VTH-150-BL is a compact Vacuum Lifting Aid powered by a 230V or 110V blower pump. The blower pump moves the air at high speed, making the unit ideal for lifting porous materials. The unit can be used by hand using the 2 steering handles and on a machine with the standard lifting eye.
Specifications
• W.L.L. (Working Load Limit): 200 kg
• Weight: 21 kg
• Dimensions (lxwxh): 1430x660x550 mm
• Propulsion: Blower Pump
• Pump capacity: 212m3/h
• Minimum work pressure: -0.2 Bar
• Controls: Manual
rouble-free lifting/relocating up to 200 kg
Lifting/relocating (concrete) products up to 200 kg? With the VTH-150-BL this can be done without any problems. With suction plates ranging between 30 kg. and 200 kg. working load limit, there is a suitable suction plate for every product up to 200 kg.
Hand and Machine:
Each unit is equipped with adjustable steering handles, a lifting eye and a 10-meter extension cord. The VTH-150-BL can be used by hand, but also very easily on your machine by using the standard lifting eye.
Comfort and safety:
The steering handle is equipped with a manual release valve, so suction and release directly from the steering handle. There are 3 working positions and a transport position. Finally, the unit is equipped with a clearly visible vacuum meter that shows whether it is safe to lift.
