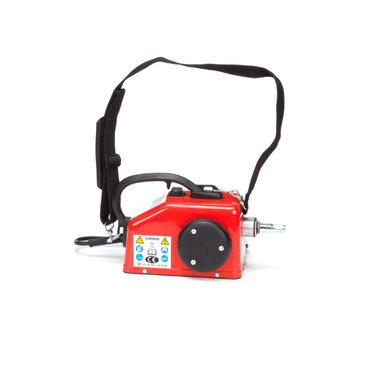

Lievers 110v P14E Hand Held Concrete Poker Drive Unit 4000 RPM Pendulum Vibration

A handy, lightweight device that has proven itself particularly well in compaction work in narrow or tightly reinforced formwork, on smaller construction sites and with precast concrete elements.

The P14E stick vibrator is a lightweight device (± 6 kg) for fast and optimal compaction of almost all concrete compositions. The special drive motor has a shaft speed of only 4,000 revolutions per minute. The flexible shaft also rotates at only 4,000 revolutions per minute. The Pendulum system generates 12,000 vibrations per minute, which, together with the high centrifugal force, enable the concrete to be compacted quickly and optimally.

Specially designed for compacting concrete floors, beams, foundations, lintels, elevations the Lievers P14E is a manageable, light weight poker for compacting all kinds of concrete. The 115v drive unit drives the flexible shaft at a speed of only 4000 rpm.  Thanks to its pendulum system,  the poker realises 12,000 vibrations per minute and this together with a high amplitude ensures an excellent compaction of any type of concrete. Available hose lengths range from 1m to 4m and head sizes are either 28mm, 38mm or 45mm.

The features of the P14E are

• Real pendulum vibrating system.
• Low shaft speed, only 4.000 rpm.
• Quick-action coupling with quick release for easy hose replacement.
• Hardened steel pendulum and poker head.
• No lubrication required; maintenance free.
• Self adjusting bearing system.
• Rubber hose with steel belt and spring steel-spiral, impervious to water, oil and chemicals.
• Lightweight (3 kg) drive unit, double insulated (according to CE-regulations), IP 54 isolation class.
