HHNG5 46″ Ride On Power Trowel

£22,960.80 (£19,134.00 +VAT)

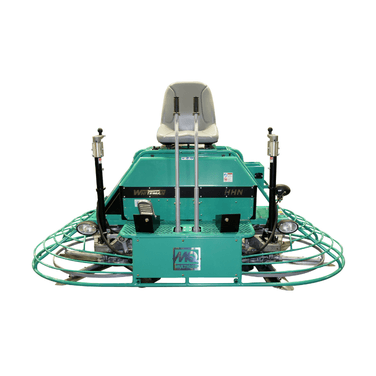

46″ Whiteman Ride On Power Trowel

Product Description

The HHNG5 mechanical ride-on power trowel is powered by a 35 HP Briggs and Stratton Vanguard Air Cooled V-Twin engine that includes several new features that raise the performance bar.

        HHNG5 Drive System

  • Powerful 35 HP Briggs and Stratton Vanguard air cooled V-twin engine meets EPA Phase 3 standards
  • Continuously variable transmission (CVT) provides superior performance by continually adjusting the drive ratio to obtain optimum torque and speed during all phases of finishing from low speed high torque to high speed burnishing
  • Automotive constant velocity joints ensures smooth and consistent
    power is being transferred to the gearboxes
  • Helical gearboxes are the industry’s most efficient, coolest
    running trouble free design. These gearboxes are also backed with a three year warranty
  • Spider assemblies feature long lasting wear plates and spider hubs and can be economically rebuilt. Standard model comes with 5 blade configuration

HHNG5 Design

  • TwinPitch control enables the operator to simultaneously
    control the pitch of both rotors with minimal effort, yet still
    allows for individual pitch control
  • Lifting points are built in to the machine for balanced lifting. (Lifting straps included)

HHNG5 Operator Controls

  • LED lighting provides state of the art illumination for night time or indoor work
  • Steering assist prevents operator fatigue and makes
    controlling the machine remarkably easy even with float pans.

Additional Information

Weight 565 kg
Dimensions 256 × 130 × 108 cm
Engine

Vanguard 35HP petrol

Engine Power Kw (HP)

26 (35)

Ring Diameter mm (Inch)

1,200 (46)

Engine RPM

0-180

Clutch Type

CVT*

No. of Blades

5

Rotor speed

0-180

Steering Control

Mechanical

Overall Length mm (inch)

2,410 (94.8)

Overall Width mm (inch)

1,650 (48)

Overall Height mm (inch)

1,450 (59)

Operating Weight Kg (lbs)

491 (1082.4)

Path Width mm (Inch)

2,330 (92)

Fuel

Petrol

MQ APPROVED USED EQUIPMENT

When you purchase any MQ approved used equipment, you have the reassurance of knowing that all the equipment has to meet our meticulous standards before they are offered for resale. All elements of the refurbishment are carried out with original spare parts and in the unlikely event that you will have an issue within the first 30 days, we offer a full warranty guarantee during this initial period.
